List of Operators

>> Logical Operators
>> Relational Operators
>> Equality Operators
>> Arithmetic Operators
>> Bitwise Operators
>> Reduction Operators
>> Shift Operators
>> Conditional Operators
>> Replication Operators
>> Concatenation Operators
>> Operator Precedence


Logical Operators

Symbol Description #Operators
! Logical negation One
|| Logical OR Two
&& Logical AND Two

Relational Operators

Symbol Description #Operators
> Greater than Two
< Less than Two
>= Greater than or equal to Two
<= Less than or equal to Two

Equality Operators

Symbol Description #Operators
== Equality Two
!= Inequality Two
=== Case equality Two
!== Case inequality Two

Arithmetic Operators

Symbol Description #Operators
+ Add Two
- Substract Two
* Multiply Two
/ Divide Two
** Power Two
% Modulus Two

Bitwise Operators

Symbol Description #Operators
~ Bitwise negation One
& Bitwise AND Two
| Bitwise OR Two
^ Bitwise XOR Two
^~ or ~^ Bitwise XNOR Two

Reduction Operators

Symbol Description #Operators
& Reduction AND One
~& Reduction NAND One
| Reduction OR One
~| Reduction NOR One
^ Reduction XOR One
^~ or ~^ Reduction XNOR One

Shift Operators

Symbol Description #Operators
>> Right shift Two
<< Left shift Two
>>> Arithmetic right shift Two
<<< Arithmetic left shift Two

Conditional Operators

Symbol Description #Operators
?: Conditional Two

Replication Operators

Symbol Description #Operators
{ { } } Replication > One

Concatenation Operators

Symbol Description #Operators
{ } Concatenation > One

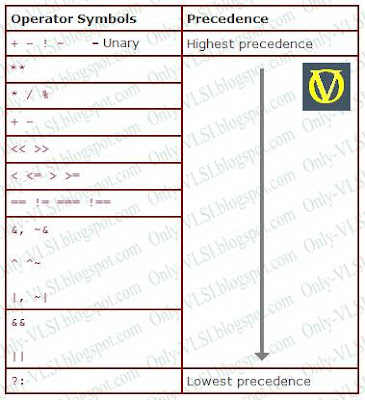

Operator Precedence
